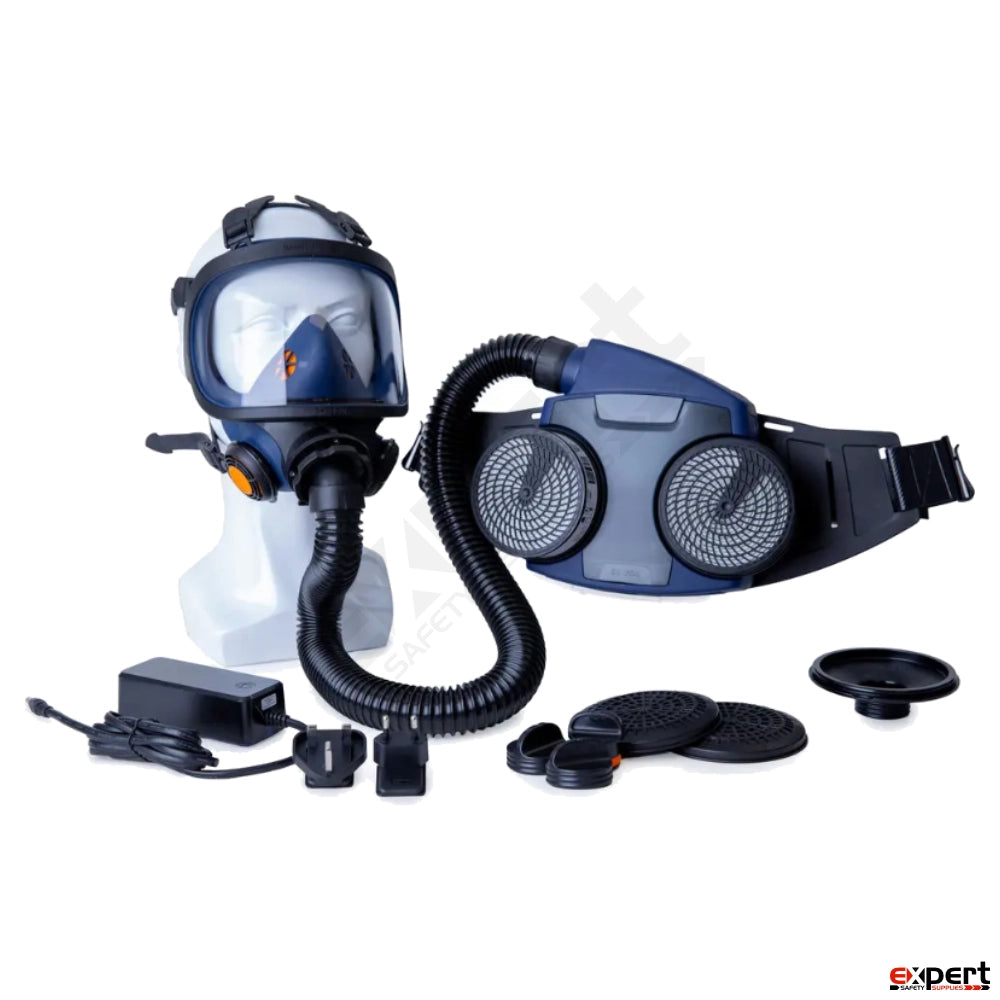

Sundström Asbestos Kit (H10-0042) – SR 700 Fan Unit, SR 200 Full Face Mask and SR 510 P3 Filter

DATA SHEET

Product Overview

A complete powered air respiratory kit assembled for asbestos work, combining the Sundström SR 700 fan unit, the SR 200 full face mask and an SR 510 P3 particulate filter. The SR 200 is made of silicone in one size to fit most face sizes, with three inhalation valves and two exhalation valves giving very low breathing resistance, and a spherical scratch-resistant polycarbonate visor providing a large field of vision.

Key Features

• Complete kit – SR 700 fan unit, SR 200 full face mask and SR 510 P3 filter supplied together
• Silicone SR 200 full face mask, one size to fit most face sizes
• Three inhalation valves and two exhalation valves giving very low breathing resistance
• Exhalation valve covers with baffles protect the valves and membranes against dust and paint mist
• Valve design and location improve the scope for communication
• Mask body material and pigments FDA and BGA approved for exposure to provisions, minimising contact allergy risk
• Easily adjustable elastic head harness secured to the visor frame and exhalation valves
• Large crown plate contributes to a comfortable and secure fit
• Spherical scratch-resistant polycarbonate visor giving a large field of vision
• Holder for pre-filter included

Technical Specifications

• Kit ordering number: H10-0042
• Fan unit: Sundström SR 700
• Head top: SR 200 full face mask with polycarbonate visor (H01-1212)
• Filter: SR 510 P3 particulate filter
• Mask material: Silicone
• Mask weight: approx. 450 g
• Inhalation resistance at 30 L/min: approx. 10 Pa (standard limit ≤ 50 Pa)
• Exhalation resistance at 160 L/min: approx. 56 Pa (standard limit ≤ 300 Pa)
• Service temperature: -10°C to +55°C, < 90% RH
• Storage temperature: -20°C to +40°C, < 90% RH
• Standard thread connection: 40 x 1/7"
• Assigned Protection Factor (SR 200 as filtering device): 40 with P3, 20 with GasX, 20 with GasX P3
• Nominal Protection Factor (SR 200 with P3): 1000
• Visor impact test: 6 mm dia. steel ball at 120 m/s

Safety Standards & Compliance

• EN 136:1998 – full face masks
• EN 166:2001 – eye protection
• EN 148-1:1999 – standard thread connection for respiratory protective devices

Typical Applications

• Licensed asbestos removal and remediation
• Hazardous dust and fibre environments
• High-risk particulate work requiring an APF of 40 or above
• Work requiring full face protection alongside powered respiratory protection
