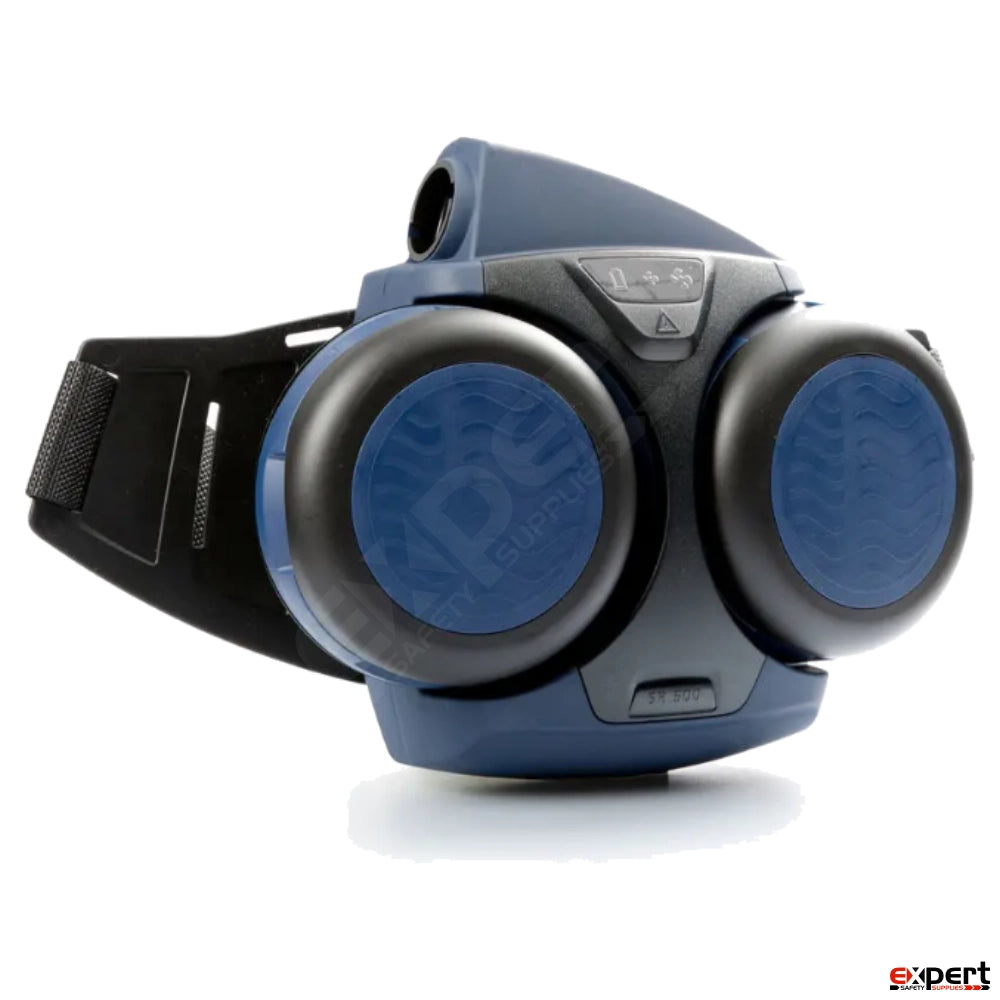

Sundström SR 500 Powered Air Purifying Respirator (PAPR) Fan Unit

DATA SHEET

Product Overview

The SR 500 is a battery-powered fan that, together with a filter and an approved head top, forms a Sundström fan-assisted respiratory protective device system. It can be used as an alternative to filter respirators in all situations where these are recommended, and is particularly suited to work that is hard, warm or of long duration. Filtered air is fed through a hose to the head top, generating positive pressure that prevents surrounding pollutants from penetrating the mask.

Key Features

• Battery-powered fan unit for use with a filter and approved Sundström head top
• Lithium-ion battery with two options: Standard 2.25 Ah and Heavy Duty 3.5 Ah
• Battery capacity indicator
• Takes two filters or combined filters
• Operating time of up to 11 hours
• Single control for starting, stopping and operating status selection
• Display with symbols
• Automatic air flow control with compensation for air pressure and temperature
• IP67 electronics ingress protection to IEC/EN 60529
• Particularly suited to hard, warm or long-duration work

Technical Specifications

• Model: SR 500 (ordering number H06-0112)
• Air flow, min/max: 175 / 240 L/min
• Battery: Lithium-ion, 14.4 V, 2.25 Ah (Standard) or 3.5 Ah (Heavy Duty)
• Charging time: approx. 2 hours (Standard), approx. 3 hours (Heavy Duty)
• Operating time at 175/240 L/min with P3 and Standard battery: 7 h / 4 h
• Operating time at 175/240 L/min with P3 and Heavy Duty battery: 11 h / 6 h
• Standard minimum operating time requirement: ≥ 4 h
• Ingress protection: IP67 (IEC/EN 60529)
• Compatible head tops: hoods SR 520, SR 530, SR 561, SR 562, SR 601, SR 602, SR 603, SR 604; face shield SR 570; welding shield/face shield SR 574/SR 570; half mask SR 900; full face mask SR 200; welding shield SR 592; helmet with visor SR 575, SR 580; welding shield/helmet SR 574/SR 575, SR 584/SR 580

Safety Standards & Compliance

• EN 12941:1998 +A2:2008 – powered filtering devices incorporating a helmet or hood
• EN 12942:1998 +A2:2008 – power assisted filtering devices incorporating full face masks, half masks or quarter masks

Typical Applications

• Construction, demolition and site dust
• Grinding, cutting and sanding operations
• Warm or physically demanding work where a filter respirator becomes uncomfortable
• Long-duration tasks requiring sustained respiratory protection
